Automatic Eyeleting Machine for Footwear, Bags and Advertising Banners

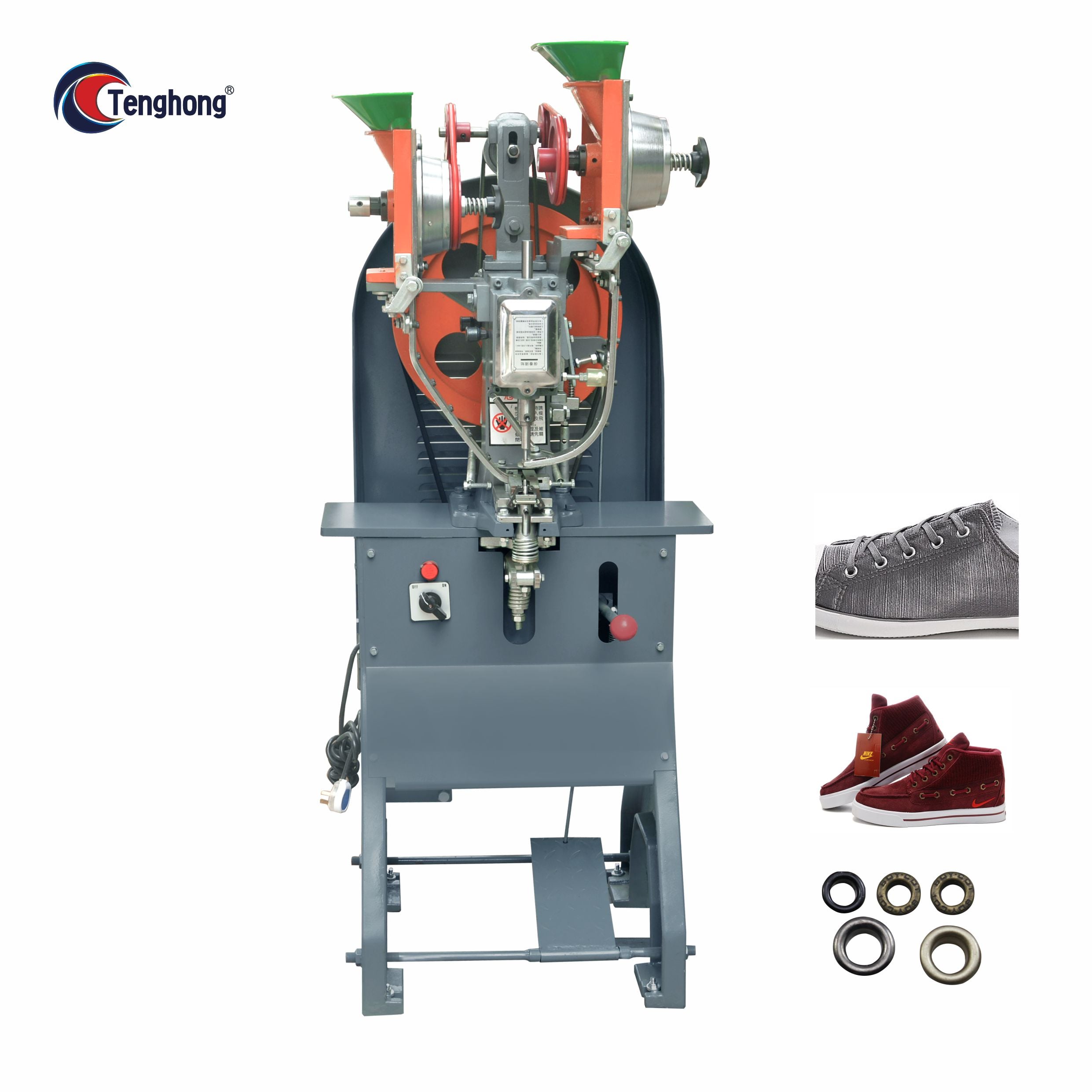

The automatic eyeleting machine is a high-efficiency solution designed for the simultaneous feeding and setting of eyelets and necked washers. Unlike semi-automatic versions, this specialized equipment handles the entire fastening cycle in one mechanical stroke, making it a critical asset for high-volume production in the footwear, garment, and advertising sectors. At Tenghong, we focus on providing an automatic eyeleting machine that helps B2B manufacturers achieve consistent clinch quality while minimizing the labor cost per unit.

In modern factory environments, this machine serves as a bridge between material preparation and final assembly. Whether you are working with heavy-duty tarpaulin, canvas, advertising banners, or leather handbag linings, the ability to automate washer delivery is a significant advantage. By integrating a dual-channel vibratory feeding system, the automatic eyeleting machine ensures that both components are perfectly aligned before the punch descends, preventing the manual errors common in traditional setups.

Key Functional Features

The technical superiority of our equipment is reflected in its mechanical synchronization and material handling capabilities:

• Dual Automatic Feeding: Both the eyelet and the necked washer are delivered automatically from separate hoppers. This configuration reduces the operator's task to material positioning only.
• Precision Die Alignment: The upper and lower dies are engineered to maintain concentricity, which prevents barrel splitting or uneven flange formation during the cycle of the automatic eyeleting machine.
• High Torque Operation: Equipped with a 1/2HP motor, the unit provides sufficient force to penetrate multiple layers of tough material, such as reinforced PVC.
• Stable Cycle Times: The mechanical clutch system ensures that each stroke is executed at a constant speed, maintaining uniform eyeleting effects across thousands of repetitions.

For factories that demand high throughput, the automatic eyeleting machine maintains a stable rhythm that manual labor cannot match over an eight-hour shift.

Application and Material Versatility

The automatic eyeleting machine is highly adaptable across various industrial substrates. Its 130mm throat depth allows for the processing of large panels, which is particularly beneficial for footwear, apparel, and advertising products. When using this technology on soft materials like thin fabric or plastic film, the washer provides the necessary surface area to prevent the eyelet from tearing out under tension. This dual-component fastening is a standard requirement for export-quality products in the bags and leather series.

Technical Specifications

Workflow Integration and Setup

Integrating an automatic eyeleting machine into an existing production line requires careful consideration of the workflow. Because this equipment operates much faster than manual tools, the bottleneck often shifts to material handling. We recommend placing the unit on a level, rigid floor to minimize vibration, which can affect the vibratory feeder’s efficiency over long periods.

For manufacturers dealing with multiple eyelet sizes, it is important to note that the automatic eyeleting machine is typically optimized for a specific range. Changing from a Φ13mm eyelet to a Φ6mm version requires a changeover of the feeding tracks and die sets. Tenghong provides technical support to help your maintenance team perform these adjustments correctly to ensure the automatic eyeleting machine continues to function at peak performance.

Maintenance and Quality Control

To ensure the longevity of your hardware, a disciplined maintenance schedule is required. The high-speed nature of the feeding tracks means that dust and material debris must be cleared daily to prevent blockages.

• Lubrication: Weekly lubrication of the main ram and clutch mechanism is essential to prevent frictional wear.
• Feeder Bowl Cleaning: Residue from eyelet coatings can accumulate in the tracks; cleaning these ensures the automatic eyeleting machine feeds smoothly without jams.
• Die Inspection: Inspect the setting dies for burrs or rounding. Worn dies will result in sharp edges on the finished eyelet, which can damage laces or injure end-users.

Within any workshop, the most common cause of downtime is the use of poor-quality fasteners. Eyelets with inconsistent barrel heights or malformed flanges can jam the feeding rails of the automatic eyeleting machine. We recommend sourcing high-quality, burr-free eyelets to ensure your equipment operates at peak efficiency.

Tenghong Manufacturing and Support

As a specialist in shoe and leather machinery since 2000, Guangdong Tenghong Machinery Technology Co., Ltd. provides more than just hardware. When you invest in a Tenghong automatic eyeleting machine, you gain access to decades of experience in footwear and bag production. Our facility in Dongguan is equipped to test your specific materials on the machine before shipment, ensuring that the die pressure and feeding speed are perfectly tuned to your requirements.

Selecting the right automatic eyeleting machine involves analyzing your specific production requirements. Buyers should provide samples of their eyelets and washers, along with the material they intend to use. This allows us to customize the feeding tracks of the equipment to your exact specifications. Furthermore, we can configure the motor to match local industrial voltage standards.

The automatic eyeleting machine is a robust and necessary investment for any factory looking to scale up production. Its ability to automate the most tedious parts of the fastening process makes this technology a cornerstone of modern manufacturing efficiency.
