Boot Shaping Coating Machine

The TH-216C Boot Shaping Coating Machine is a specialized industrial solution designed to revolutionize the structural reinforcement and shaping of high-end footwear, particularly riding boots. By utilizing an integrated 0.9KW electric heating system and a precision-driven 1/8HP motor, this Boot Shaping Coating Machine replaces traditional reinforcement fabrics and hot-melt adhesive tapes with a direct, eco-friendly coating process that ensures permanent curvature without the need for post-shaping freezing.

In traditional riding boot manufacturing, shaping the upper typically involves multiple layers of reinforcement fabric or specialized "dot tapes" that increase material thickness and labor costs. The Boot Shaping Coating Machine streamlines this workflow by applying a controlled layer of eco-friendly hot-melt adhesive directly onto the boot upper. This mechanical approach not only reduces material waste but also provides a more resilient structural bond that prevents the leather from rebounding, even under the high-stress conditions associated with equestrian footwear.

Engineering Innovation in Boot Reinforcement

The core mechanical advantage of the TH-216C Boot Shaping Coating Machine lies in its ability to manage adhesive viscosity and application thickness with extreme precision. The 0.9KW heating element is calibrated to maintain the adhesive at an optimal temperature, ensuring it remains fluid enough for deep fiber penetration but viscous enough to provide structural rigidity once set.

• Cost Efficiency: By eliminating the need for pre-manufactured shaping fabrics, the Boot Shaping Coating Machine significantly lowers the per-unit cost of production. Manufacturers no longer need to maintain extensive inventories of varied reinforcement materials.
• Permanent Curvature: A significant technical hurdle in boot making is "rebound," where the leather attempts to return to its flat state. After processing with this Boot Shaping Coating Machine, the chemical and mechanical bond of the hot-melt adhesive locks the fibers in place, maintaining the boot's silhouette indefinitely.
• Adjustable Width and Thickness: The machine allows operators to modify the glue application width and thickness on the fly. This flexibility is vital for riding boots, where different sections of the boot—such as the ankle versus the calf—require varying degrees of support and flexibility.

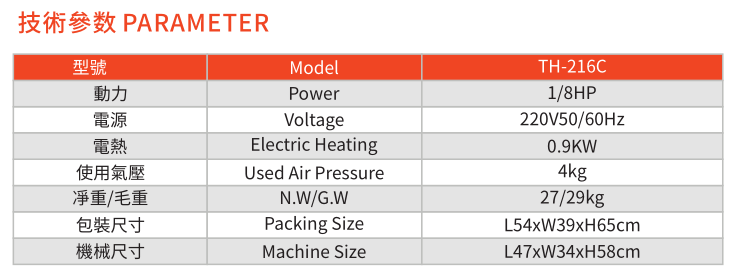

Technical Specifications and Pneumatic Integration

The TH-216C is engineered for high-duty cycles, featuring a robust chassis that weighs 27kg, providing the necessary stability for pneumatic operations. The integration of air pressure allows for a more uniform distribution of the adhesive across uneven leather surfaces.

The 4kg air pressure requirement is a critical specification for the Boot Shaping Coating Machine. This pneumatic force ensures that the hot-melt adhesive is pressed firmly into the leather substrate, creating a composite-like structure that is significantly stronger than a simple surface bond. The 220V power system supports both the 1/8HP motor and the 0.9KW heater, making it compatible with standard global industrial electrical grids.

Eco-Friendly Adhesive Application

Modern manufacturing standards demand a shift away from toxic solvents and odorous chemicals. The Boot Shaping Coating Machine is designed specifically to work with eco-friendly hot-melt adhesives. These materials are non-toxic, odorless, and colorfast, ensuring that the finished footwear meets the highest environmental and health safety standards.

For premium leather goods, colorfastness is paramount. Traditional glues can sometimes "bleed" through thin leathers or cause discoloration over time. However, the adhesive technology used in the Boot Shaping Coating Machine is chemically stable, preserving the aesthetic integrity of high-grade hides. This makes the machine an essential tool for brands focusing on the "clean manufacturing" trend, where the chemical footprint of the product is as important as its design.

Operational Workflow and Process Optimization

The implementation of the Boot Shaping Coating Machine into a production line removes the "freezing" bottleneck. In traditional shaping, boots are often placed in mold plate freezers to set the shape. Because the TH-216C uses high-performance hot-melt technology, the shape is set almost instantly upon cooling at room temperature.

1. Preparation: The operator sets the 0.9KW heater to the required temperature based on the adhesive's melting point.
2. Width Adjustment: The guides on the Boot Shaping Coating Machine are adjusted to match the specific reinforcement zone of the riding boot upper.
3. Application: The leather is fed through the rollers, where the 4kg air pressure ensures an even, thin coat of adhesive is applied to the interior surface.
4. Shaping: Once coated, the boot upper is immediately moved to the lasting or shaping station. The adhesive provides instant structural integrity.

By removing the freezing step, the Boot Shaping Coating Machine shortens the total lead time for a pair of boots, allowing for higher daily output and reduced energy consumption across the factory floor.

Maintenance and Industrial Reliability

To ensure the TH-216C Boot Shaping Coating Machine maintains its 0.9KW heating efficiency and roller precision, a strict maintenance schedule must be followed. The buildup of dried adhesive is the most common cause of mechanical friction in coating equipment.

• Heater Maintenance: Regularly check the thermocouple and heating elements to ensure the Boot Shaping Coating Machine is reaching the correct temperature. Inconsistent heat can lead to "lumpy" glue application.
• Roller Cleaning: The application rollers must be cleaned while warm to remove excess adhesive. This prevents the rollers from becoming unbalanced, which would compromise the 4kg pressure distribution.
• Pneumatic System: The air filters and regulators of the Boot Shaping Coating Machine should be inspected weekly to ensure that the 4kg air supply remains dry and consistent.

Guangdong Tenghong Machinery Technology Co., Ltd. has been a leader in the footwear machinery industry since 2000. Our 15,000㎡ manufacturing facility produces the Boot Shaping Coating Machine to meet the rigorous demands of international export markets. With a focus on durability and innovative cost-saving designs, our equipment is currently utilized in over 26 countries by top-tier footwear manufacturers.

The TH-216C represents a significant upgrade for any facility specializing in boots and heavy leather footwear. By combining the power of a 1/8HP motor with a high-efficiency 0.9KW heater and 4kg pneumatic control, this Boot Shaping Coating Machine provides a reliable, eco-friendly, and cost-effective solution for modern boot shaping. Investing in a professional Boot Shaping Coating Machine is the most effective way to ensure that your products maintain their premium silhouette while optimizing your production costs and environmental impact.
