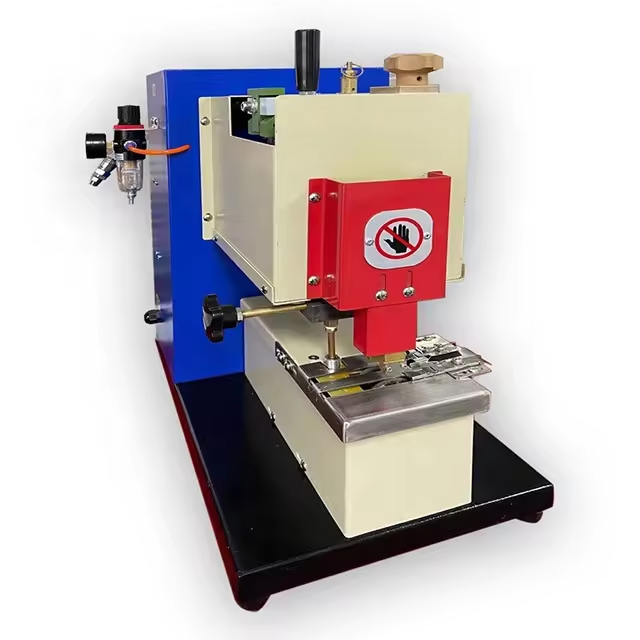

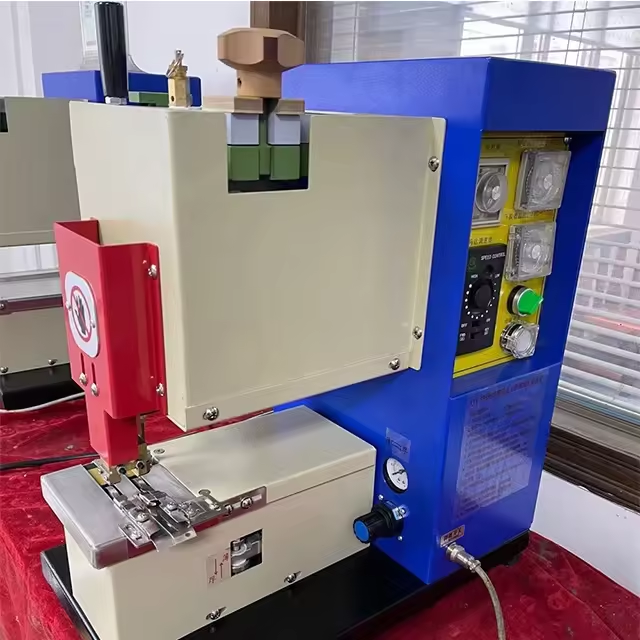

Hot Melt Adhesive Edge Coating Machine

The TH-216/216A Hot Melt Adhesive Edge Coating Machine is an industrial-grade solution designed to replace manual double-sided tape and liquid glue brushing in footwear, leather, and assembly industries. By integrating a 0.9KW electric heating system with a 1/8HP motor, this Hot Melt Adhesive Edge Coating Machine provides a consistent, high-cleanliness bond on workpieces ranging from irregular curved leather edges to flat electronic components.

In many manufacturing environments, the reliance on double-sided adhesive tape results in high costs and significant waste due to discarded release paper. The Hot Melt Adhesive Edge Coating Machine eliminates these overheads by applying molten adhesive directly to the edge or surface of the material. This method not only reduces the carbon footprint of the production line but also ensures that the workpiece remains free of the sticky residue often left by tape, leading to a more professional and durable final assembly.

Thermal Dynamics and Pneumatic Application Control

The core mechanical efficiency of the Hot Melt Adhesive Edge Coating Machine is centered on its thermal management and pneumatic stability. The 0.9KW heating element is specifically engineered to reach melting temperatures rapidly and maintain them with minimal fluctuation. This stability is critical for preventing the degradation of the adhesive's chemical properties, ensuring that the bond remains flexible yet strong.

A steady 4kg air pressure system is utilized within the Hot Melt Adhesive Edge Coating Machine to regulate the flow of the molten polymer. Unlike gravity-fed systems, the pneumatic pressure ensures that the adhesive is forced into the fibers of the substrate, whether it be leather, textile, or wood. This is particularly important for irregular curved shapes, where a consistent film thickness is difficult to achieve by hand. The 1/8HP motor provides the necessary mechanical torque to drive the application rollers at a constant speed, preventing "blobs" of glue from forming when the material resistance increases.

Technical Specifications and Multi-Industry Integration

The TH-216 series Hot Melt Adhesive Edge Coating Machine is built with a heavy-duty chassis to withstand the rigors of multi-shift industrial use. Its compact dimensions allow for easy integration into existing assembly lines.

The versatility of the Hot Melt Adhesive Edge Coating Machine extends far beyond the footwear industry. While it is a staple for handbag assembly and edge trimming, its ability to handle strip adhesives makes it valuable in the electronics sector for component bonding and in the packaging industry for box sealing. The machine can be adjusted to handle different material thicknesses and glue widths, allowing a single Hot Melt Adhesive Edge Coating Machine to process everything from thin garment fabrics to heavy woodworking panels.

Operational Adjustability and Material Versatility

A primary requirement for modern edge coating equipment is the ability to adapt to varying production demands without extensive downtime. The Hot Melt Adhesive Edge Coating Machine offers three main points of adjustment: thickness, width, and volume.

1. Workpiece Thickness: The roller gap on the Hot Melt Adhesive Edge Coating Machine can be calibrated to accommodate materials ranging from 0.5mm leather to thicker composite boards used in the toy and furniture industries.
2. Glue Application Width: Operators can set specific boundaries for the adhesive spread, which is essential for "edge-only" applications in leathercraft where the center of the material must remain clean.
3. Adhesive Volume: By controlling the 4kg air pressure and the 0.9KW heating temperature, the flow rate can be fine-tuned to ensure that only the minimum necessary amount of glue is used, further reducing material costs.

Whether the task involves assembling carpet sections, bonding toy components, or trimming shoe edges, the Hot Melt Adhesive Edge Coating Machine ensures that the adhesive is applied evenly. This uniformity is a technical necessity for industries like electronics and garment manufacturing, where excess glue can lead to mechanical failure or aesthetic rejection.

Maintenance Efficiency and Long-Term Reliability

One of the standout features of the TH-216/216A Hot Melt Adhesive Edge Coating Machine is its low failure rate and simplified maintenance protocol. In a professional setting, downtime for cleaning can be a major bottleneck. The design of this machine emphasizes accessibility to the heating tank and the application rollers.

Because hot melt adhesive sets as it cools, the Hot Melt Adhesive Edge Coating Machine must be cleaned while the 0.9KW heater is still active. Regular removal of old adhesive prevents the formation of "char," which can clog the internal nozzles and reduce the efficiency of the 4kg pneumatic system. The 1/8HP motor and drive assembly are shielded from glue spills, ensuring that the mechanical links remain lubricated and free from contamination. This robust construction is why the Hot Melt Adhesive Edge Coating Machine is favored by manufacturers in over 26 countries who require 24/7 operational reliability.

Professional Manufacturing Standards by Tenghong

Guangdong Tenghong Machinery Technology Co., Ltd. has specialized in the production of professional leather and shoe machinery since 2000. Our 15,000㎡ production base is dedicated to the R&D of equipment like the Hot Melt Adhesive Edge Coating Machine, ensuring that every unit meets strict mechanical tolerances. We focus on creating tools that provide immediate ROI by reducing waste and labor hours.

Investing in a TH-216 series Hot Melt Adhesive Edge Coating Machine is a strategic move for any business looking to move away from the high costs of double-sided tapes and the mess of manual glue brushing. The combination of precision heating, pneumatic control, and adjustable application settings makes it a superior choice for a wide array of industrial sectors. By implementing a Hot Melt Adhesive Edge Coating Machine, your facility can achieve higher cleanliness standards, lower environmental impact, and a more consistent bond across all your manufactured products.
