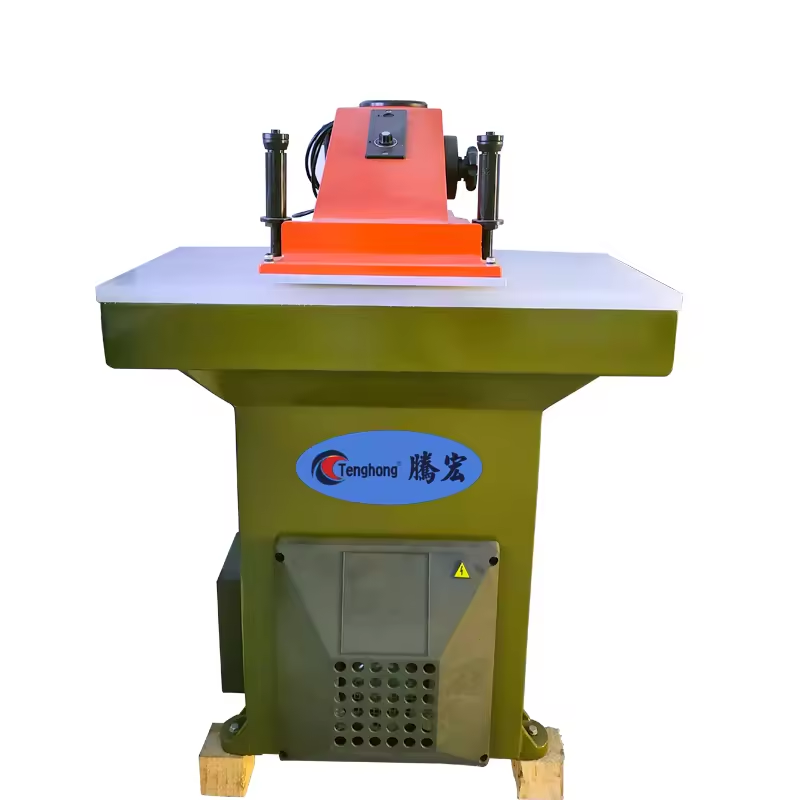

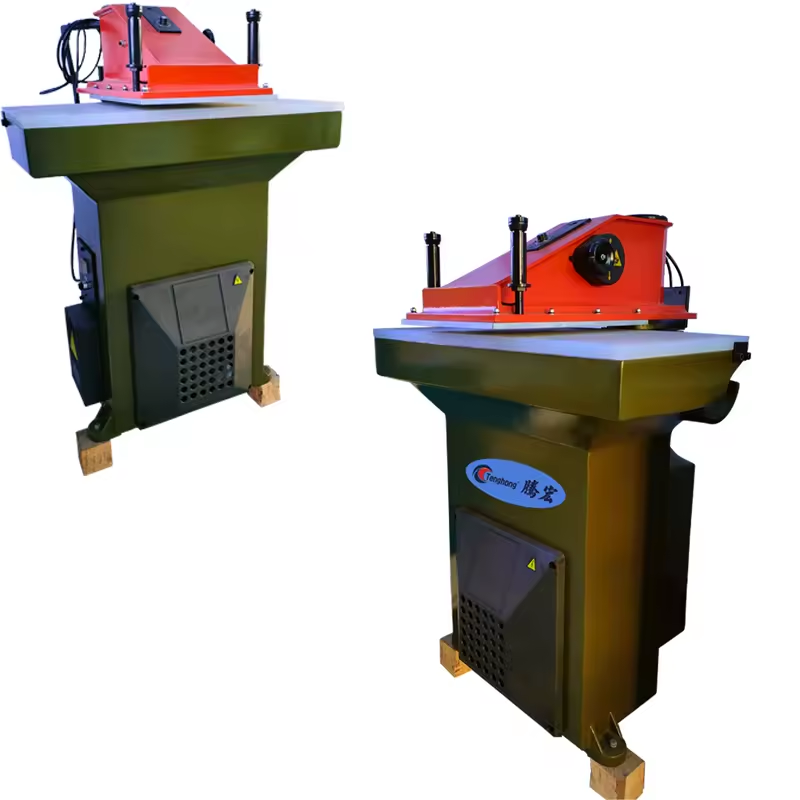

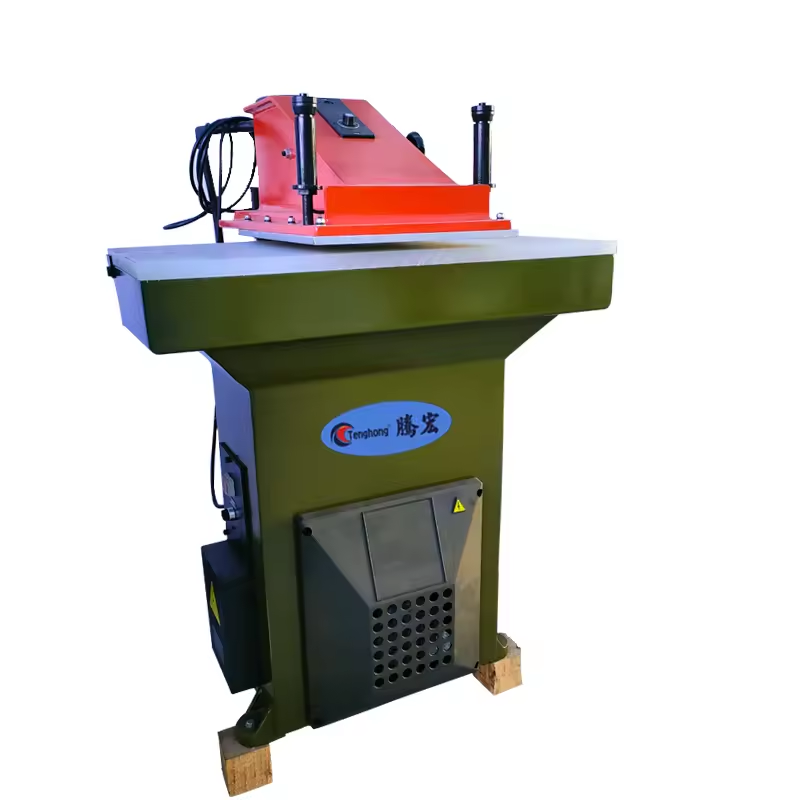

The Hydraulic Swing Arm Cutting Machine is a high-performance industrial solution designed for precision die-cutting in the footwear and leather goods sectors, offering 20 tons of striking force with an exceptionally low energy footprint. This equipment stands out for its unique hydraulic circuit that maintains low oil temperatures during high-speed operations, ensuring consistent cutting accuracy and long-term mechanical reliability.
In the competitive landscape of shoe manufacturing, efficiency in the cutting room is the primary driver of overall production speed. The TH-228 is a professional-grade Hydraulic Cutting Machine specifically engineered to handle the rigorous demands of multi-shift factory environments. By delivering high-tonnage pressure through a 37cm wide rotating head, it allows operators to process leather, synthetics, and textiles with minimal physical effort. Selecting a reliable Swing Arm Cutting Machine is a strategic decision for any facility looking to reduce material waste through precise nesting and accurate die penetration. This versatile Cutting Machine is capable of handling substrates ranging from thin garment leathers to dense, multi-layered insoles without losing its structural alignment.
The mechanical core of the TH-228 is its optimized hydraulic pressure system, which is designed for "cool" operation. In standard presses, friction within the pump and valves often causes oil temperatures to rise, leading to a loss of viscosity and inconsistent striking depths. However, this Hydraulic Cutting Machine utilizes an innovative circuit design that keeps the 25kg oil reserve at a stable, low temperature. This thermal management is vital because it protects internal seals from hardening and ensures that the 20 tons of pressure remain constant from the first cut to the last.
Noise reduction is another significant benefit of this hydraulic layout. When an operator controls a Swing Arm Cutting Machine, the sound of the pump is often a major source of fatigue; the TH-228 minimizes this decibel output, creating a more ergonomic workspace. The striking speed is also highly calibrated, featuring a rapid descent followed by a controlled impact. This reduces the mechanical shock transmitted through the 620kg chassis, ensuring the Cutting Machine maintains its precision even after millions of cycles.
Built with a heavy-duty cast frame, the TH-228 provides the rigid foundation necessary for high-tonnage strikes. Its technical parameters are specifically tailored for modern industrial footwear production.

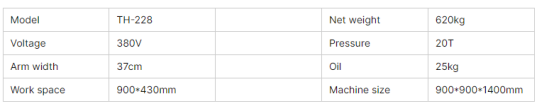

PARAMETER:
The 900x430mm workspace provided by the TH-228 offers ample room for complex die layouts, which is essential for maximizing the yield of expensive natural hides. With its 37cm arm, the operator has enough clearance to navigate large pieces of material without constant repositioning. The reliability of this Cutting Machine is further enhanced by its 380V three-phase electrical system, which provides the consistent torque needed for high-resistance materials.
Power conservation is a critical metric for modern factory overhead. This Hydraulic Cutting Machine consumes only 0.75kw of electrical power, an industry-leading figure for a press with 20 tons of capacity. This efficiency is achieved through a high-response solenoid system that only draws peak current during the split-second of the actual cut. Furthermore, the machine is equipped with an electrical protecting system that shields the motor from power surges, making it a highly durable Swing Arm Cutting Machine for regions with unstable power grids.
Safety is paramount in any cutting environment. The logic of the system requires the operator to use both hands to trigger the stroke, ensuring that fingers are well away from the striking zone. The swing arm itself is counterbalanced for "easy operation," moving with fingertip pressure to reduce shoulder strain. This combination of safety and ease of use makes this Cutting Machine a favorite among workers, leading to higher morale and lower labor turnover.
The TH-228 features a unique two-style cutting stroke adjustment system. This allows the operator to switch between different die heights—such as forged steel and thin strip dies—without the need for time-consuming mechanical re-calibration. The accuracy of this Swing Arm Cutting Machine ensures that the die only penetrates the cutting board by a fraction of a millimeter, which significantly extends the life of the board and maintains the sharpness of the cutting edges.
This level of precision is why the TH-228 is the preferred equipment for high-end brands that require perfect edge quality on every part. Whether cutting intricate handbag components or rugged athletic shoe soles, this Hydraulic Cutting Machine provides a clean, vertical strike every time. The manual controls are designed to be "serviceable" and intuitive, allowing new staff to reach professional productivity levels quickly.
To maintain long-term performance, a simple preventive maintenance schedule is recommended. The 25kg oil reservoir should be monitored to ensure the fluid remains clean and free of leather dust. Because the machine operates at a lower temperature than competing models, it is less prone to the "leakage" issues that plague a standard Swing Arm Cutting Machine.
Guangdong Tenghong Machinery Technology Co., Ltd. has specialized in leather and shoe machinery since 2000. Operating from a 15,000㎡ manufacturing base, we produce every Cutting Machine with a focus on mechanical simplicity and industrial durability. Our Hydraulic Cutting Machine products are currently exported to over 26 countries, reflecting our commitment to global quality standards.
The TH-228 represents a perfect balance of power, safety, and efficiency. With its 20T pressure and energy-saving 0.75kw motor, this Hydraulic Cutting Machine provides a superior return on investment for any production line. Its robust 620kg construction and precise stroke settings make it an indispensable piece of equipment for facilities that prioritize quality. By integrating this professional technology into your workflow, you can ensure a more productive, safe, and cost-effective manufacturing environment.
