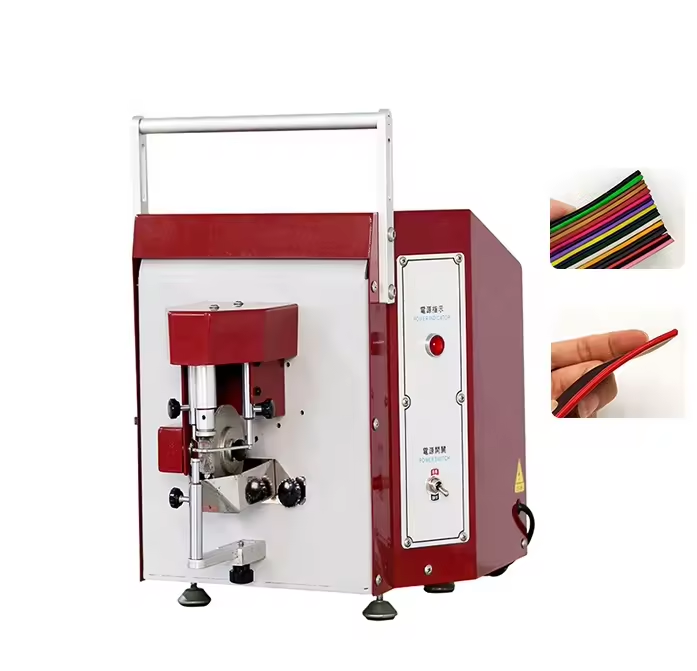

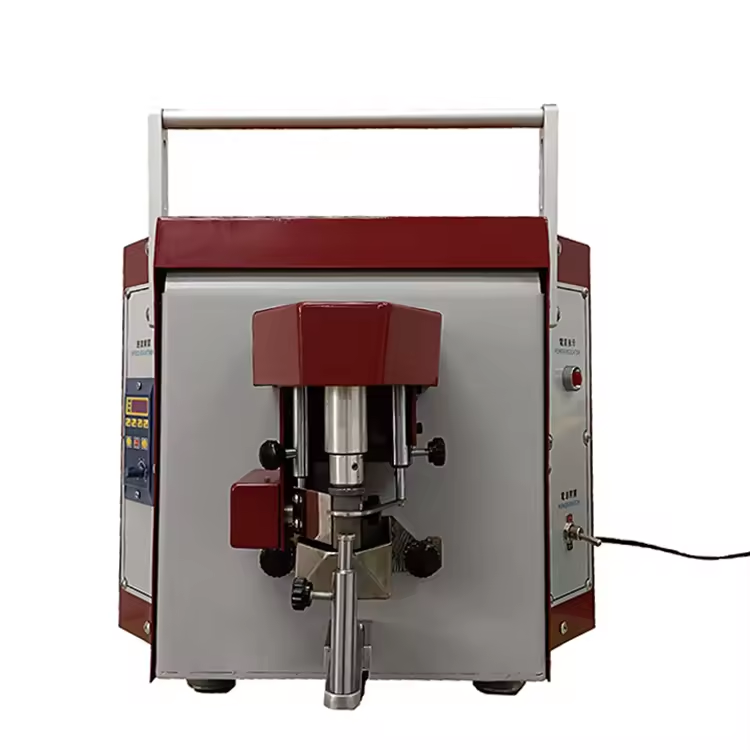

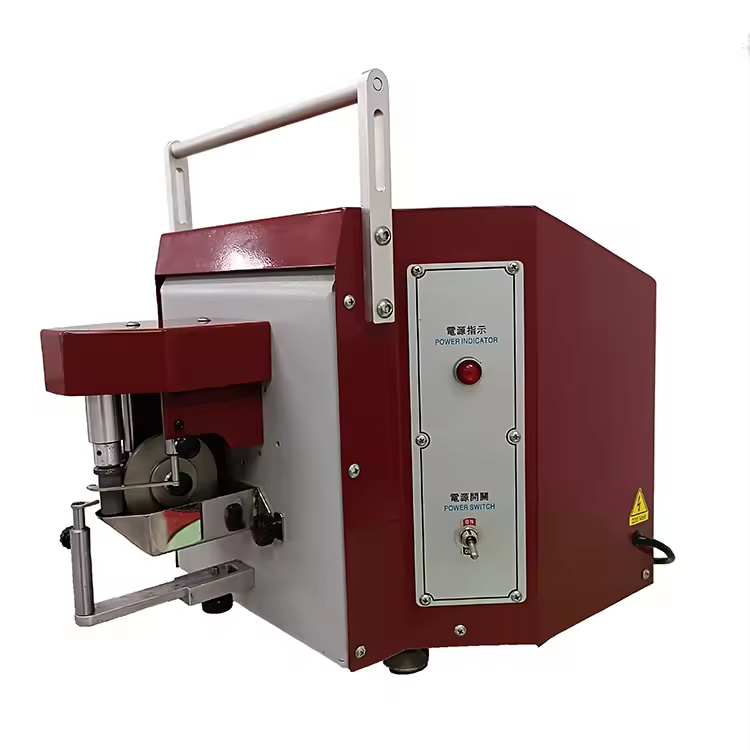

TH-141B Coarse Shaft Dyeing Machine

The TH-141B Coarse Shaft Dyeing Machine is a precision-engineered tabletop solution designed for the efficient application of edge oil to a wide variety of leather accessories. By utilizing a horizontal rotating cylinder system, this compact unit provides a uniform finish on leather, synthetic fabrics, and other substrates, making it a preferred choice for small-to-medium-scale leather goods workshops.

Unlike large-scale vertical industrial models, this equipment is designed for maximum flexibility and manual control. It allows craftsmen to adjust the pressure and feeding angle of the workpiece against the rotating shaft, which is necessary for achieving high-quality edge coloring on irregular shapes or delicate components. Using the Dyeing Machine ensures that even the most intricate curves receive a consistent coating without the mess and wasted material associated with traditional manual brushing techniques.

Mechanical Principles of the Coarse Shaft System

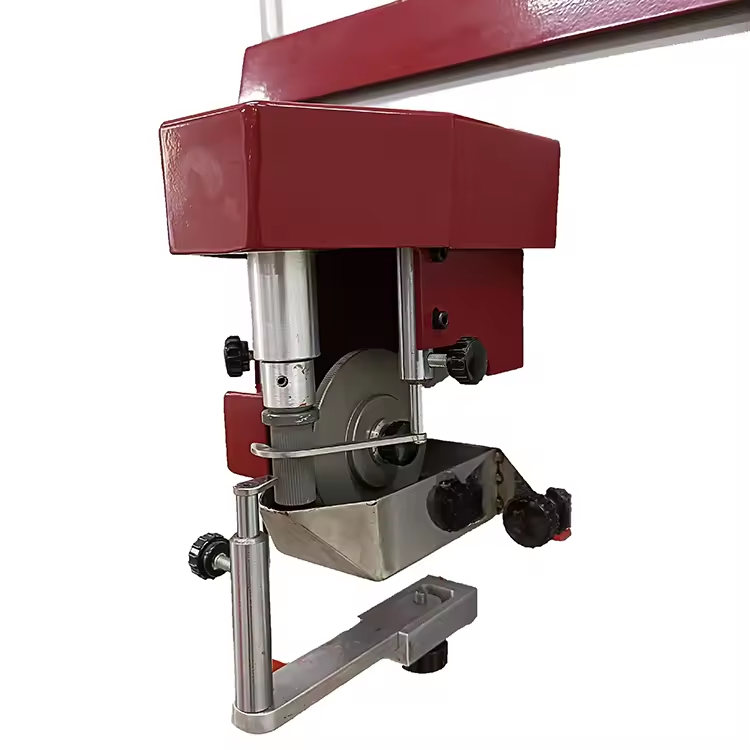

The primary advantage of the Coarse Shaft Dyeing Machine lies in the specific geometry of its application cylinder. The "coarse" designation refers to the textured surface and larger diameter of the rotating shaft, which serves a functional purpose in the fluid transfer process.

• Optimized Fluid Retention: The wider circumference of the cylinder in the Coarse Shaft Dyeing Machine allows for a more stable interaction with the oil reservoir. This ensures the shaft surface remains consistently saturated with edge paint, preventing the "dry spots" that often occur with thinner shafts.
• Enhanced Surface Friction: The textured surface of the shaft helps "grip" the edge oil, transferring it to the leather edge with minimal slippage. This is particularly beneficial when working with absorbent materials like raw-edge vegetable-tanned leather or fibrous synthetic substrates.
• Torque and Speed Consistency: Equipped with a 50W energy-efficient motor, the Dyeing Machine maintains a steady RPM. This stability prevents the formation of oil "beads" or thick droplets, which typically happen when the rotation speed fluctuates during the application process.

For manufacturers specializing in high-end watch straps or jewelry wristbands, the Coarse Shaft Dyeing Machine provides the tactile feedback required to apply extremely thin, even layers. By performing multiple light passes, operators can build up a deep, high-gloss finish that meets the rigorous standards of luxury export markets.

Industrial Applications and Versatility

The versatility of the Dyeing Machine makes it a multi-purpose asset across various fashion and industrial sectors. Because the rotating shaft is exposed and easily accessible, the equipment can handle diverse item geometries that automated conveyor systems often struggle with.

1. Leather Accessories: Wallet corners, key fobs, and luggage tags require precise oiling around tight radii. The open design of the Coarse Shaft Dyeing Machine allows the operator to rotate the piece freely during the process.
2. Wristbands and Straps: This setup is ideal for watch bands and narrow belts where edge consistency is a visible indicator of quality. The steady rotation ensures the paint wraps perfectly around the edges of the strap.
3. Industrial Substrates: Beyond fashion, the unit is used to seal the edges of heavy-duty canvas, nylon webbing, and composite materials used in protective tactical gear or outdoor equipment.

Technical Specifications

The 24kg weight is a deliberate design choice to ensure the Coarse Shaft Dyeing Machine remains stationary on the workbench. Stability is a foundational requirement for maintaining the hand-eye coordination needed during the oiling of small parts.

Operational Workflow and Best Practices

To achieve professional results, it is helpful to integrate the Dyeing Machine into a standardized production workflow. While the hardware is simple to operate, the quality of the output depends on material preparation and chemical management.

• Viscosity Control: The Coarse Shaft Dyeing Machine performs best when the edge paint is at the correct viscosity. If the oil is too thin, it may splash or run; if it is too thick, it may create an uneven, "lumpy" texture on the rotating shaft.
• Material Preparation: Before using the Dyeing Machine, the leather edges should be properly skived and sanded. A smooth edge allows the oil to adhere more evenly and reduces the number of coats required to reach a professional finish.
• Feeding Technique: The operator should hold the leather at a consistent 90-degree angle to the shaft. For rounded edges, a gentle rolling motion ensures the paint covers the entire profile of the edge.

Maintenance and Factory Support

The long-term reliability of any Dyeing Machine is tied to daily maintenance. Edge oil, by its nature, is designed to dry quickly and adhere strongly, meaning the cleaning process must be performed immediately after each production shift.

1. Daily Cleaning: The oil reservoir and the rotating shaft of the Coarse Shaft Dyeing Machine must be washed with the appropriate solvent to prevent the paint from hardening. Hardened residue can cause the shaft to become unbalanced.
2. Motor Inspection: The 50W motor is built for industrial durability, but the drive components should be checked monthly for wear. A smooth drive system ensures the Dyeing Machine continues to rotate without stuttering.

Guangdong Tenghong Machinery Technology Co., Ltd. has been a specialist in footwear and leather machinery since 2000. When you select a Tenghong Coarse Shaft Dyeing Machine, you are supported by our 15,000㎡ manufacturing facility and decades of R&D expertise. We provide international buyers with comprehensive technical guidance to ensure our hardware integrates seamlessly into their existing production lines.

The TH-141B is a functional investment for workshops looking to move beyond manual painting. By combining the precision of hand-finishing with the speed of a motorized Dyeing Machine, this unit delivers the edge quality required for modern leathercraft.
