TH-N738B 7 Pincers Computer Memory Control Automatic Toe Lasting Machine

The TH-N738B is a next-generation computer memory-controlled automatic Toe Lasting Machine engineered for modern footwear manufacturers who prioritize flexibility, repeatability, and operator efficiency. By combining digital job recall with tool-free mechanical design, it transforms what used to be a bottleneck into a seamless, high-speed process.

Why “Computer Memory-Controlled” Changes Everything

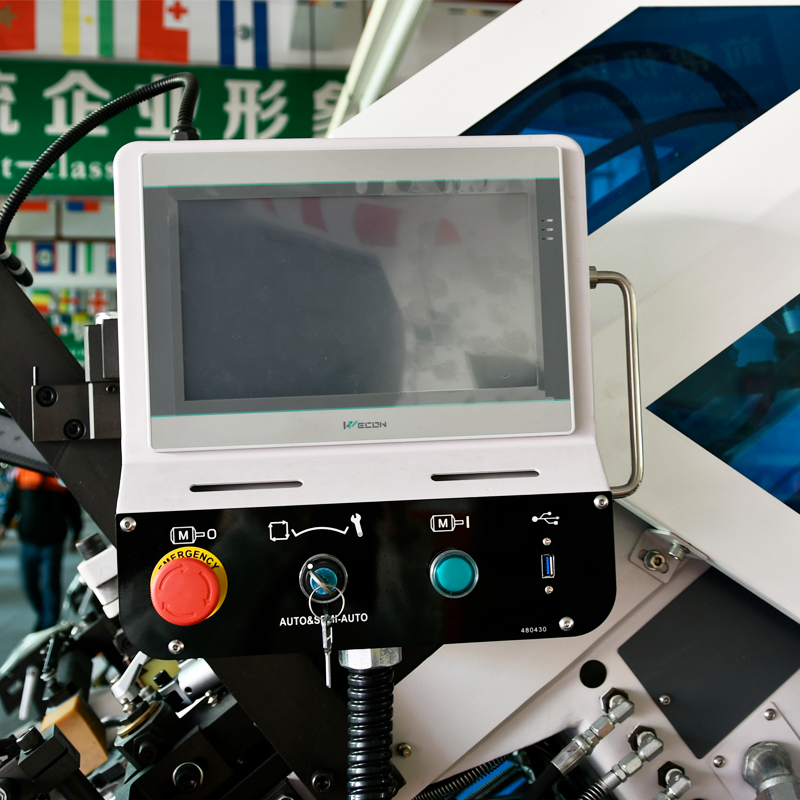

Unlike conventional automatic Toe Lasting Machines that rely on manual dial adjustments, the TH-N738B uses an encoder-driven control system to store and reproduce complete setup parameters for each shoe model—including last lift height, drafting depth, pincer sequence, and motion profile.
With up to 50+ programmable presets, operators simply select the style from the interface, and the machine auto-configures itself—eliminating guesswork, reducing training time, and ensuring ±0.1 mm repeatability across shifts, teams, and production runs.

True Automation: Fast, Smart, and Tool-Free

“Automatic” isn’t just about pressing a button—it’s about minimizing human intervention while maximizing output quality. The TH-N738B delivers this through:
5-Second Pincer Swap System: The first and second pincers feature a patented quick-release mechanism. Change between narrow, wide, or high-vamp configurations in under 5 seconds—no tools required. This is critical for factories handling diverse lasts without sacrificing uptime.
Dual-Speed Last Lifter: Choose between high-speed mode for robust uppers or gentle-start mode for delicate knits and meshes—protecting material integrity without slowing overall throughput.
Integrated Motion Logic: All seven pincers operate in a synchronized sequence dictated by stored programs, ensuring consistent tension and wrinkle-free forming every cycle.

Designed for Real-World Flexibility

While many automatic Toe Lasting Machines excel at mass-producing a single style, the TH-N738B thrives in dynamic environments:
Ideal for OEMs serving multiple brands with weekly style rotations
Perfect for private-label producers managing small batches across categories
Supports lean manufacturing goals by slashing changeover time (SMED-ready)
Optional modules—such as an auxiliary wiper blade for surface smoothing or an automatic cementing unit for integrated gluing—allow further customization based on your workflow.

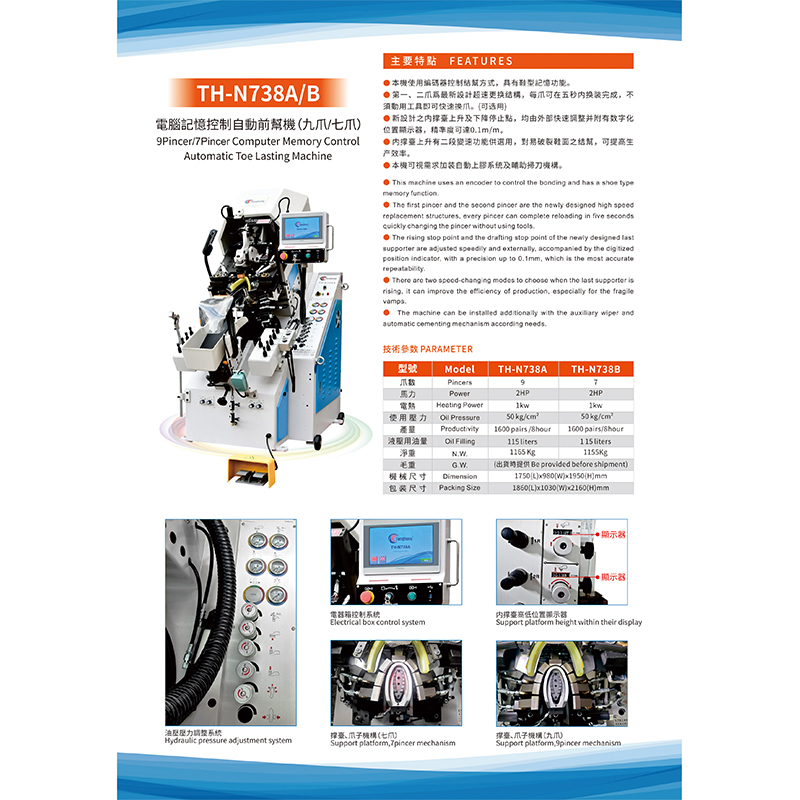

Technical Overview

Backed by Tenghong’s Manufacturing Excellence

As an ISO 9001-certified manufacturer with over 20 years in shoemaking machinery, Tenghong ensures every computer memory-controlled automatic Toe Lasting Machine undergoes rigorous testing before shipment. Our global service network provides installation, training, and lifetime technical support—so your investment delivers value from day one.
